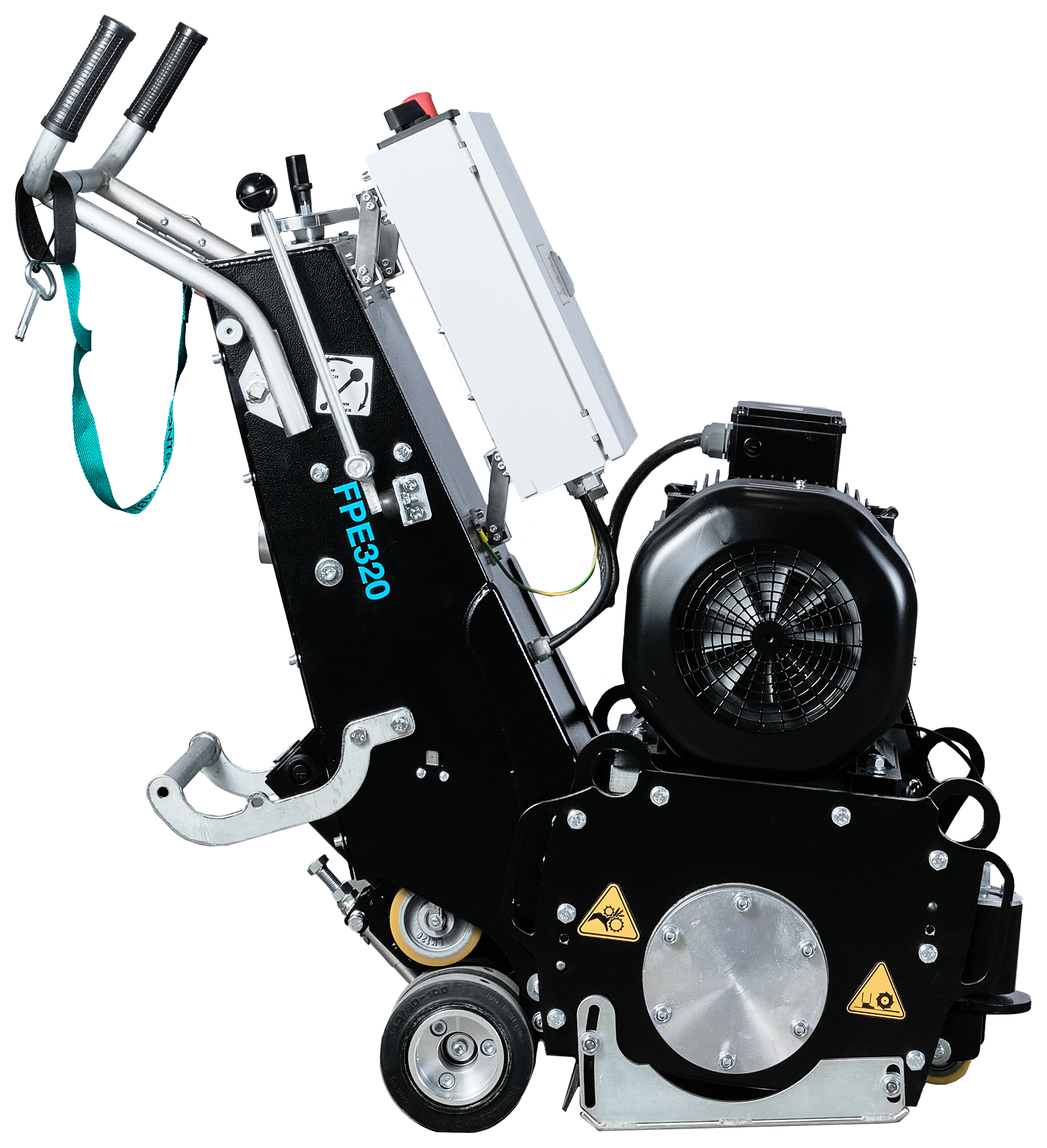

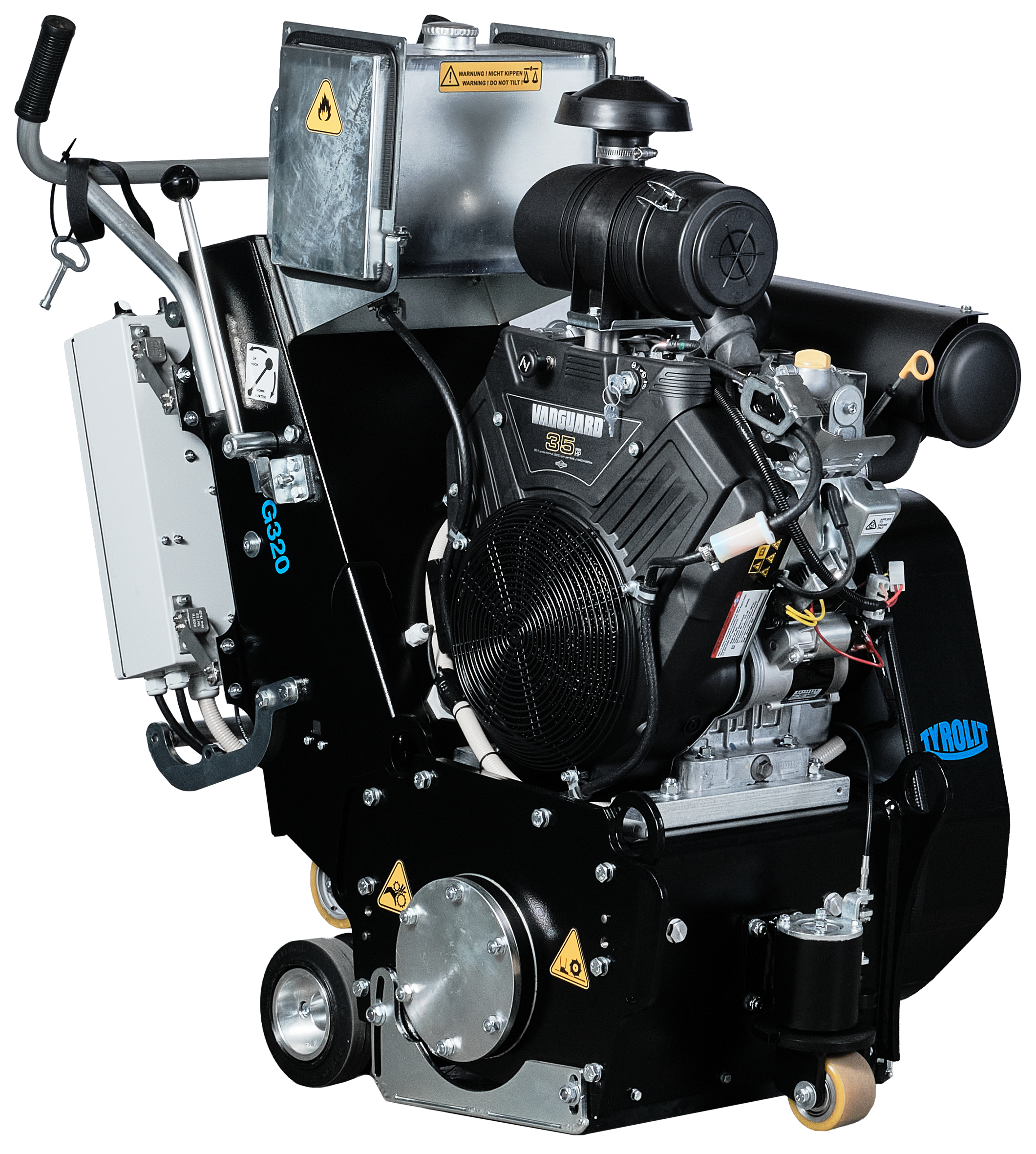

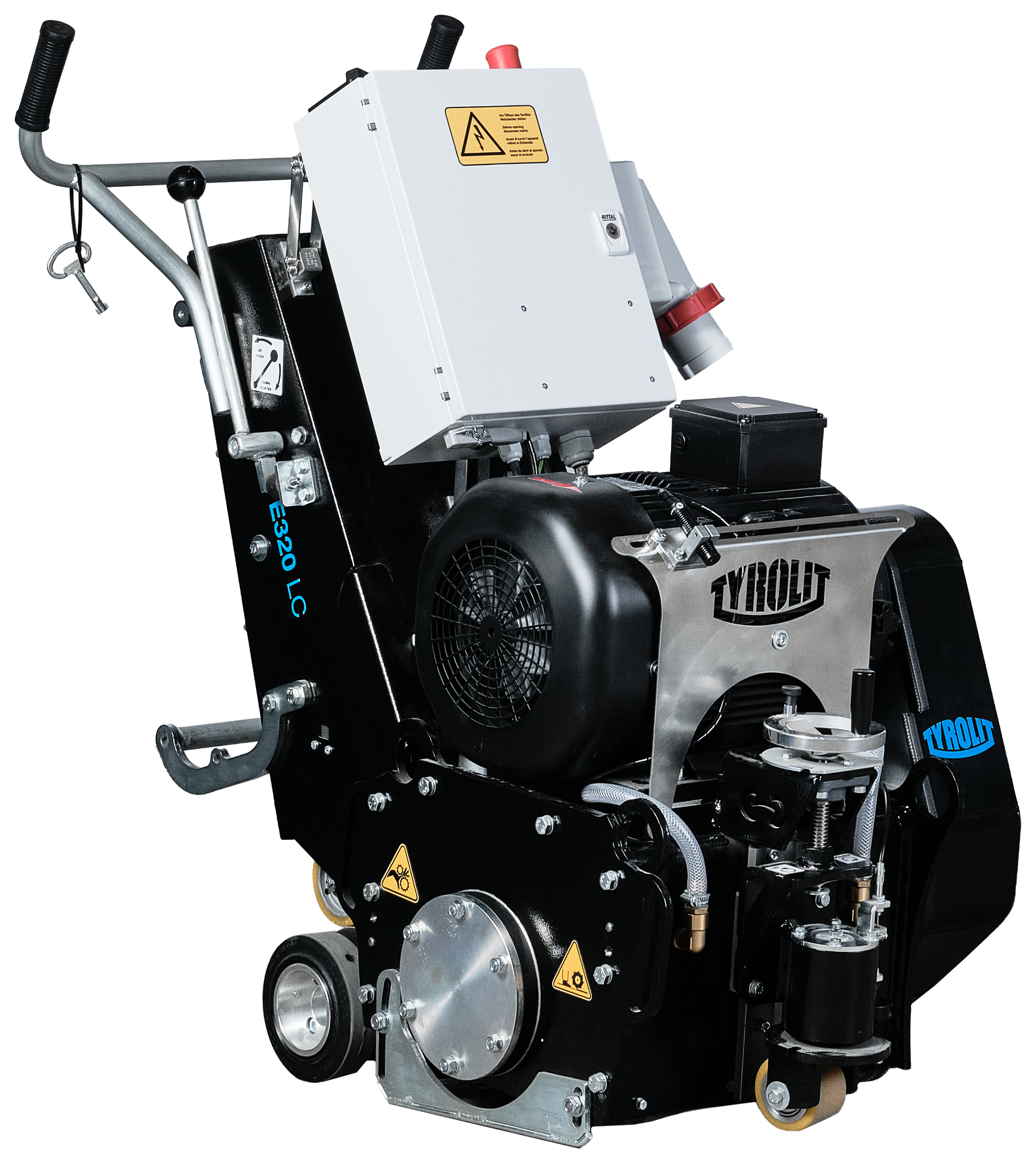

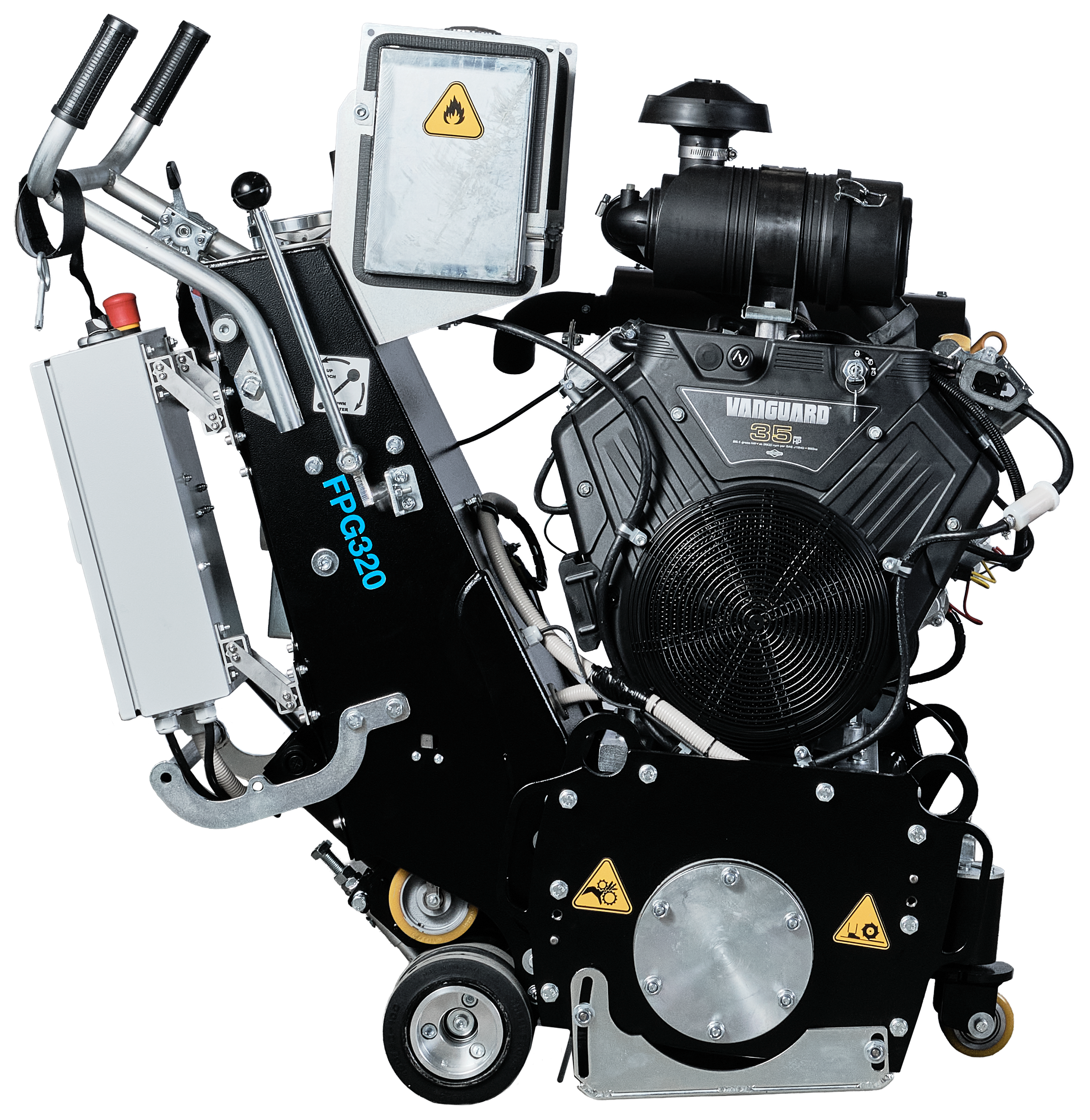

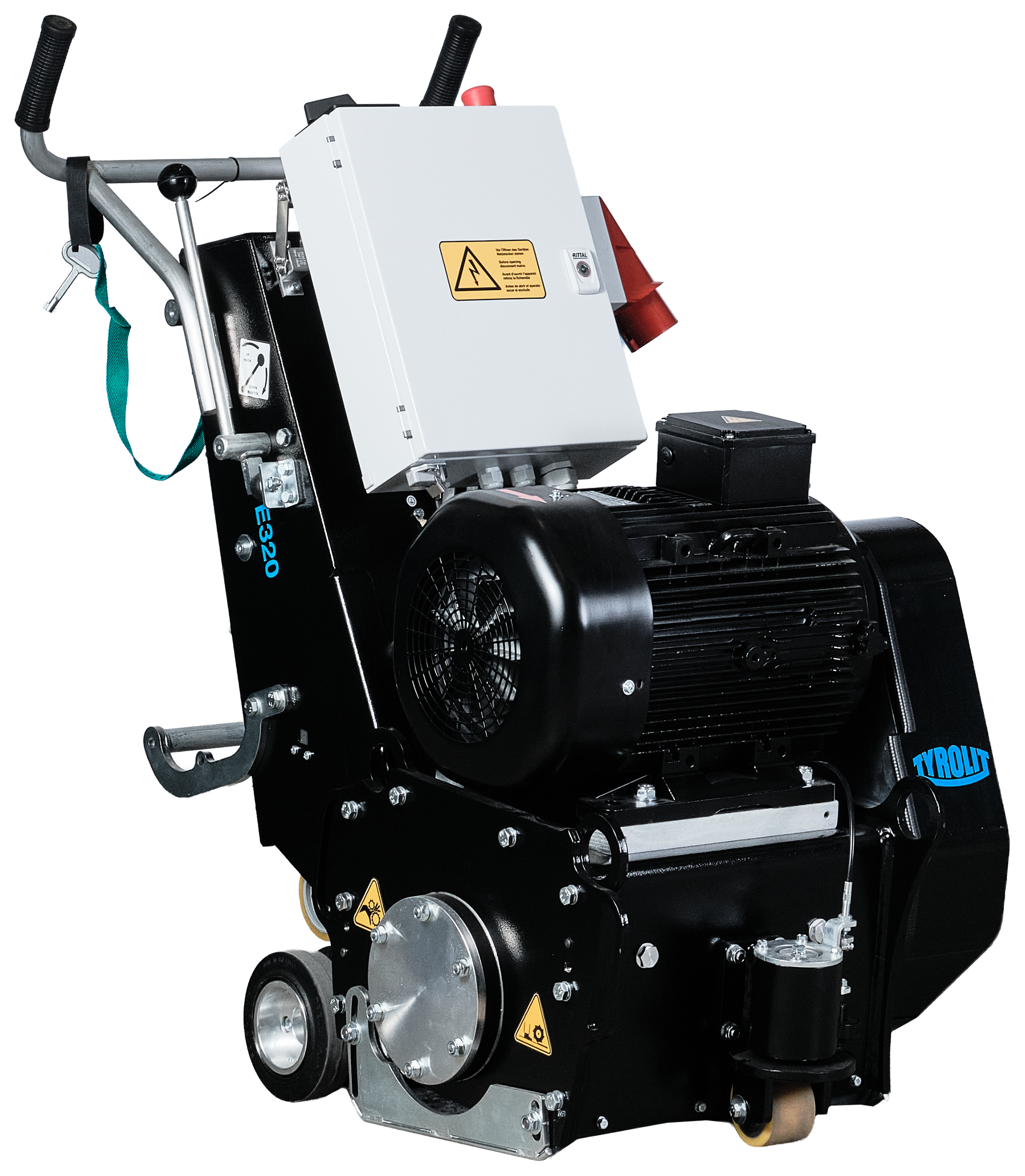

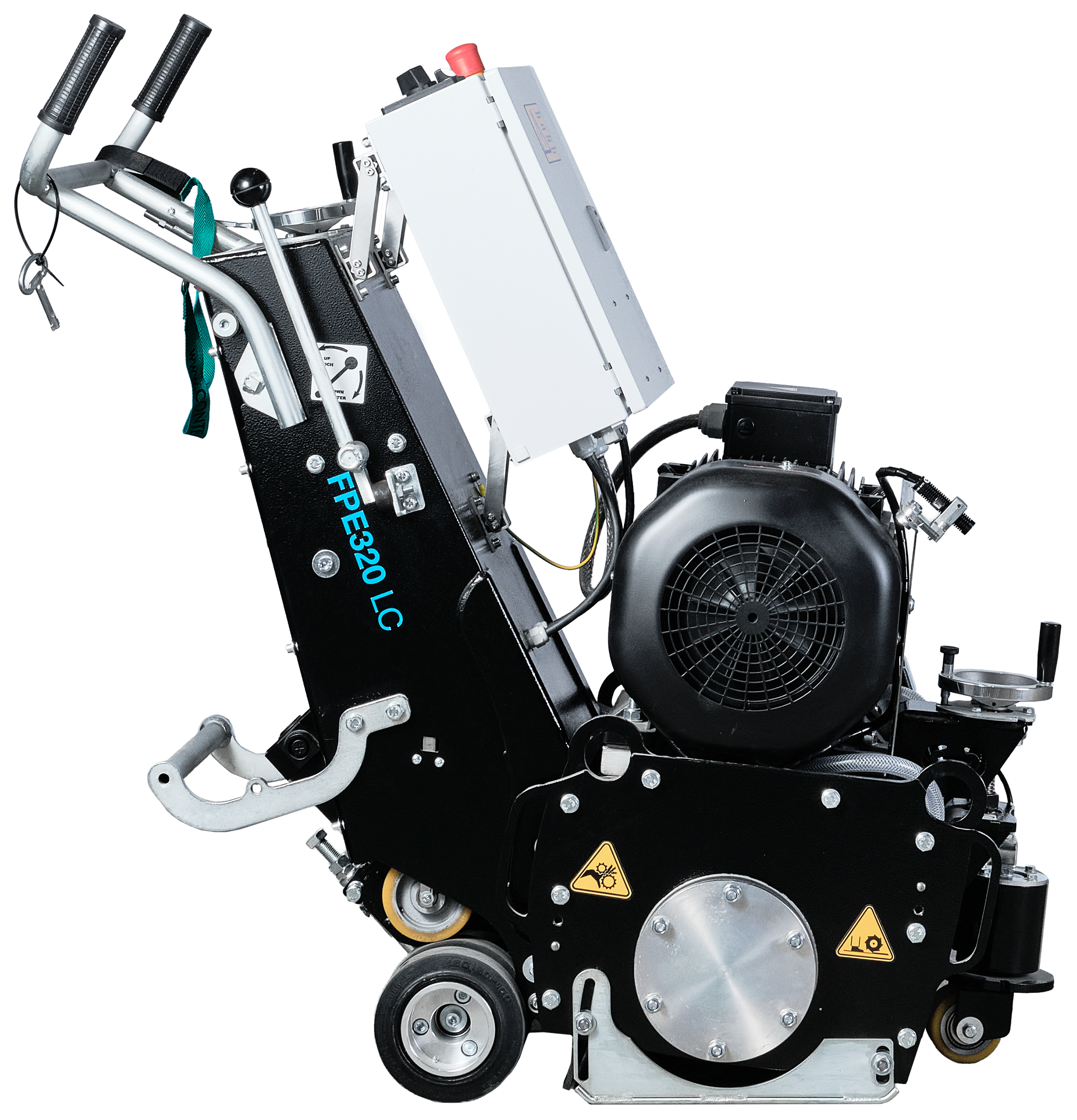

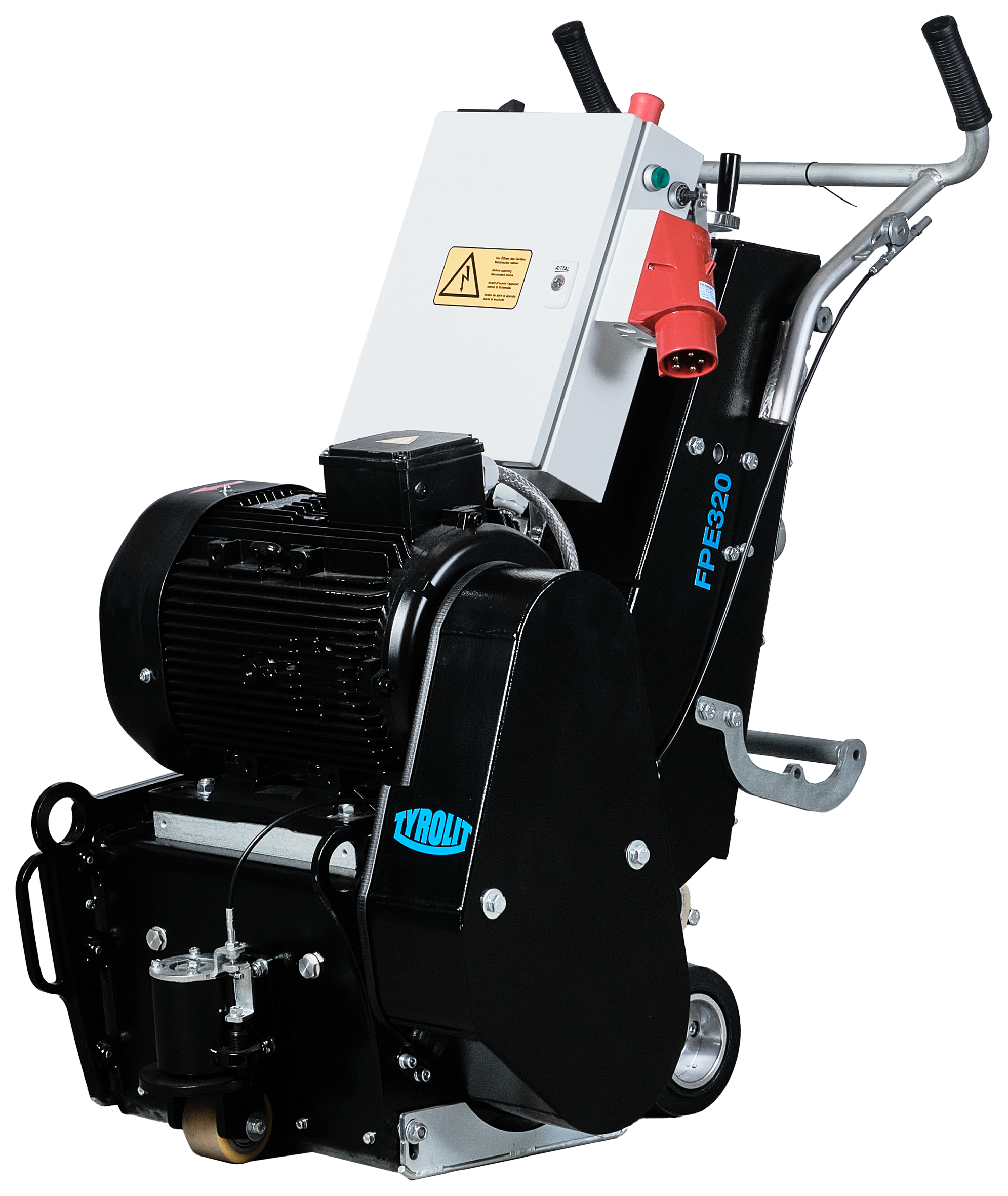

Scarifier & shaver FPE320 / FPG320
Powerful scarifier & shaver for demanding floors and large areas
The FPE320 is made for the hardest applications and floors. Heavy duty bearings ensure maintenance and trouble-free operation of the machine. The continuously variable speed drive unit is a standard. Ergonomically designed handle bars ensure fatigue-free operation. With our diamond cutter or milling cutter drums and a working width of 320 mm, this machine is ideal for processing large areas. Different motors: 15 kW, 18.5 kW electric or petrol.
version with 31 HP.
Discover more from Tyrolit
Tyrolit Construction Sweden AB is part of the Tyrolit Group. Discover a broader range of machines and tools for Construction at tyrolit.com.
Send request
Product description
Powerful scarifier & shaver for demanding floors and large areas

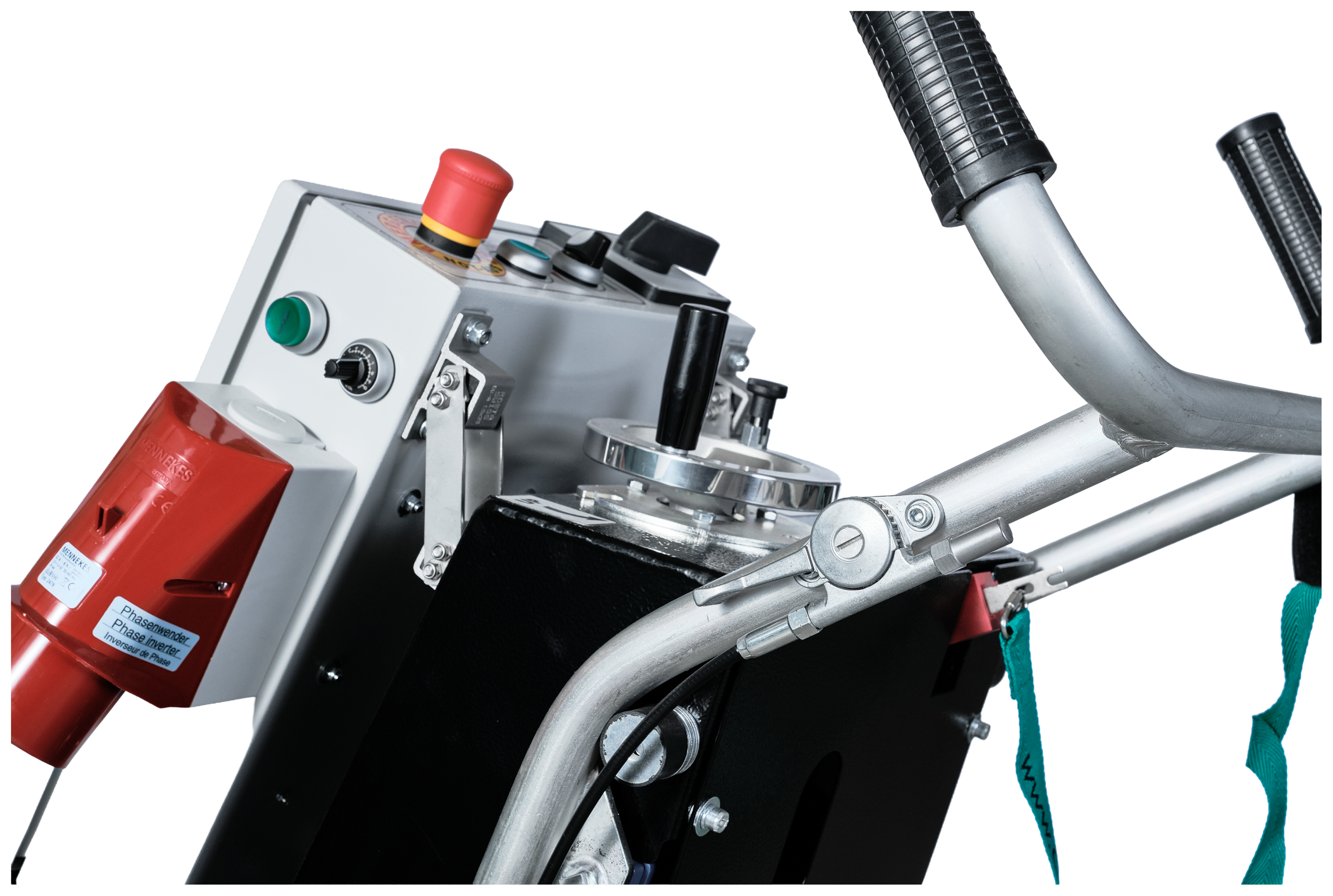

The FPE320 is made for the hardest applications and floors. Heavy duty bearings ensure maintenance and trouble-free operation of the machine. The continuously variable speed drive unit is a standard. Ergonomically designed handle bars ensure fatigue-free operation. With our diamond cutter or milling cutter drums and a working width of 320 mm, this machine is ideal for processing large areas. Different motors: 15 kW, 18.5 kW electric or petrol.
version with 31 HP.
Discover more from Tyrolit
Tyrolit Construction Sweden AB is part of the Tyrolit Group. Discover a broader range of machines and tools for Construction at tyrolit.com.
Technical specification
| FPE320 | FPE320LC | FPG320 | |
| Type no. | 11002728 | 11002928 | 11002929 |
| Working width | 320 / 340 mm | 320 / 340 mm | 320 / 340 mm |
| Voltage | 400 V | 400 V | Petrol |
| Frequency | 50 Hz | 50 Hz | |
| Nominal current | 27,9 A | 33,4 A | 1,2 A |
| Nominal power | 15 kW | 18,5 kW | 31 HP |
| Speed (drive motor) | 2935 rpm | 2935 rpm | 3000 rpm |
| Weight | 270 kg | 300 kg | 267 kg |
| Height | 1180 mm | 1180 mm | 1180 mm |
| Length | 980 mm | 980 mm | 1180 mm |
| Width | 630 mm | 630 mm | 660 mm |
| Tool speed | 1644 rpm | 1644 rpm | 1644 rpm |
| Hose connection | Camlock 3″ male | Ø 125 mm, Camlock 3″ male |
Ø 125 mm, Camlock 3″ male |
